AT9441

$0.00

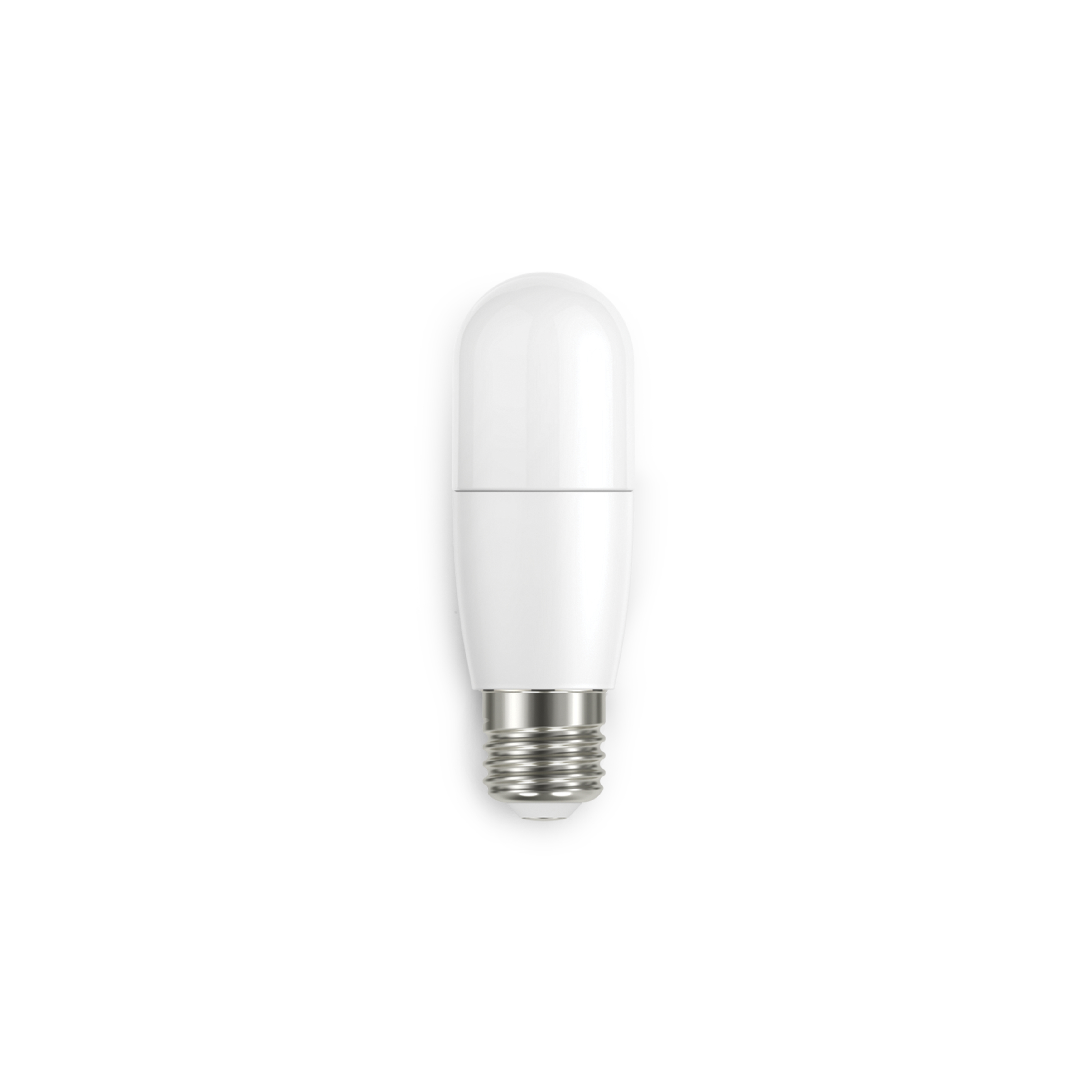

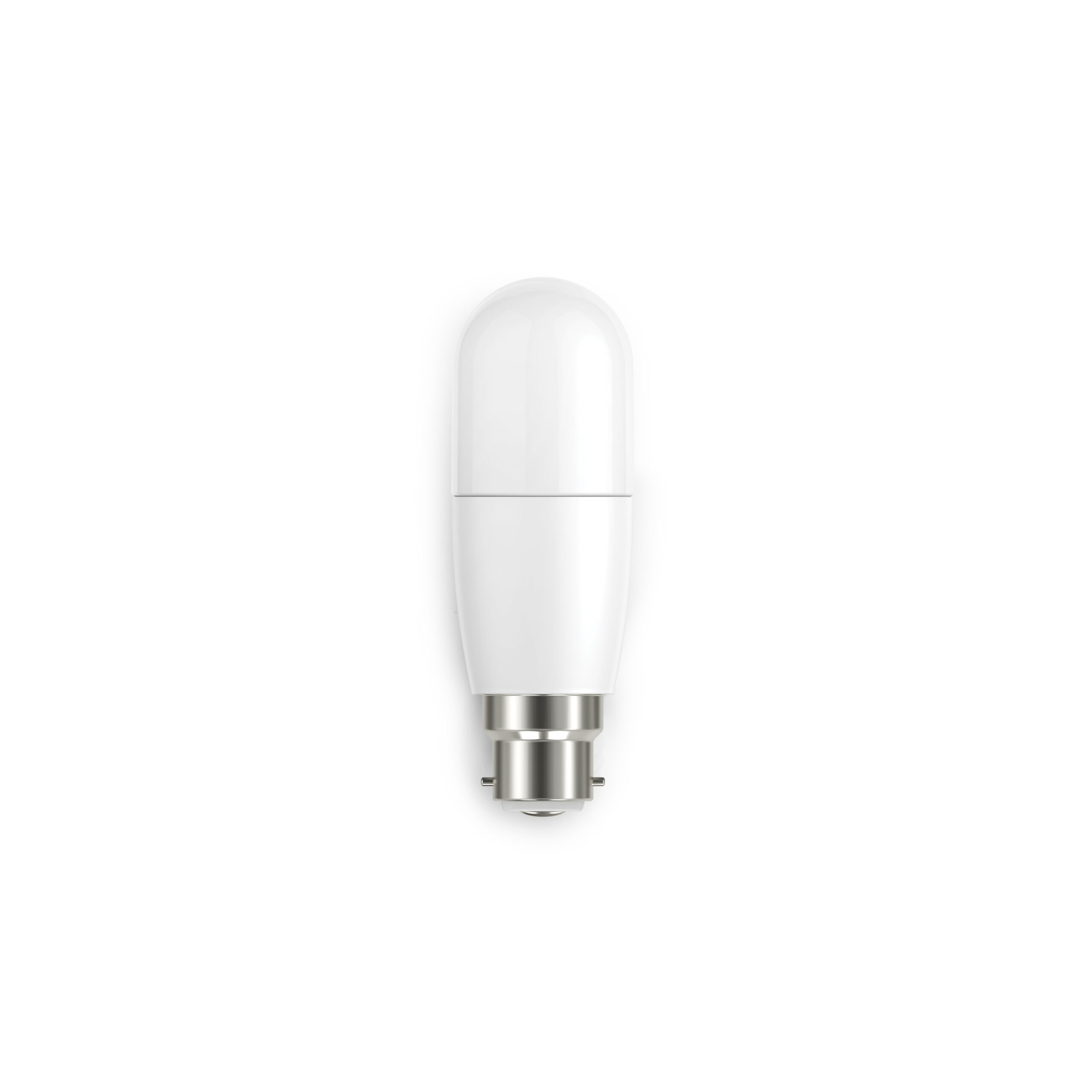

7W Stick T38 LED Lamps. Non dimmable. Frosted lens.

SKU: AT9441 Category:
Specifications

Electrical

Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage6.6 W
Power Factor0.5
System Max Wattage7 W

Lamp

Beam Angle240 °
Bulb TypeT38
CCT ConfigurationSingle
Colour Rendering Index (CRI)>80
Globe Base
AT9441/BC/CW
AT9441/BC/DL
AT9441/BC/WW
B22 / BC
AT9441/ES/CW
AT9441/ES/DL
AT9441/ES/WW
E27
Lamp/LED Current21 mA
Lamp/LED voltage272 V

Colour temperature

CCT
AT9441/BC/WW
AT9441/ES/WW
3000 K
AT9441/BC/CW
AT9441/ES/CW
4000 K
AT9441/BC/DL
AT9441/ES/DL
5700 K
CCT Colour
AT9441/BC/CW
AT9441/ES/CW
Cool White
AT9441/BC/DL
AT9441/ES/DL
Daylight
AT9441/BC/WW
AT9441/ES/WW
Warm White
LED Wattage5.7 W
Luminaire Lumens806 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

DimmableNo

Compliance

Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15

Warranty

Domestic Use Warranty1 RTB (Total 1 Year)
VIP Warranty2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. As a VIP, your warranty for lamps is increased from 1 year to 2 years return to base.
Dimensions
Product Height116 mm
Product Width38 mm
Ordering Information
Order codeItem codeDescriptionAvailability
13372AT9441/BC/CW7W T38 LED STICK LAMP B22 CW NON-DIMMABLE FROSTED
13373AT9441/BC/DL7W T38 LED STICK LAMP B22 DL NON-DIMMABLE FROSTED
13371AT9441/BC/WW7W T38 LED STICK LAMP B22 WW NON-DIMMABLE FROSTED
13375AT9441/ES/CW7W T38 LED STICK LAMP E27 CW NON-DIMMABLE FROSTED
13376AT9441/ES/DL7W T38 LED STICK LAMP E27 DL NON-DIMMABLE FROSTED
13374AT9441/ES/WW7W T38 LED STICK LAMP E27 WW NON-DIMMABLE FROSTED
Photometrics
AT9441/BC/CW
IES File

IES File


AT9441/BC/DL
IES File

IES File


AT9441/BC/WW
IES File

IES File


AT9441/ES/CW
IES File

IES File


AT9441/ES/DL
IES File

IES File


AT9441/ES/WW
IES File

IES File
