Ibiza
$0.00
3 blade 40W DC ceiling fan
- Quiet and efficient 40W DC motor
- ABS construction ideal for coastal conditions

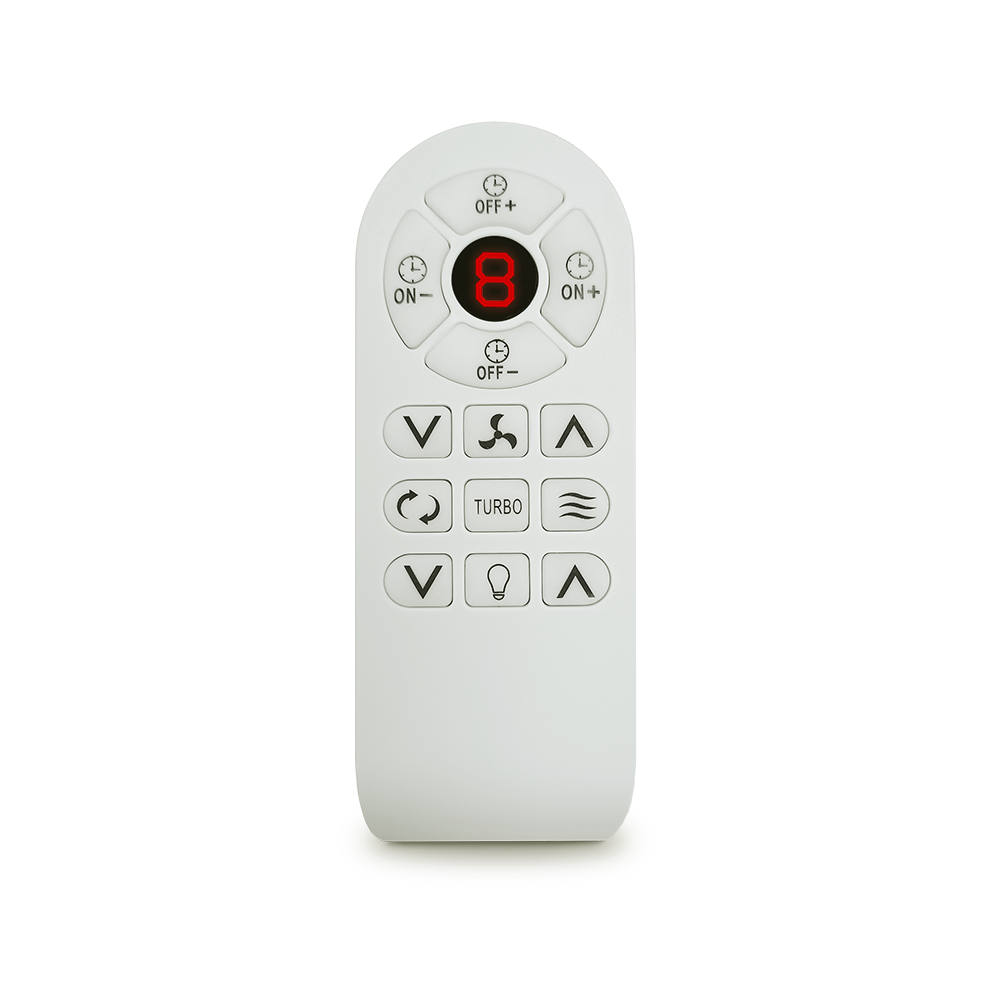

- Includes 8 speed remote control with turbo and timer function
- Suitable for outdoor under cover areas
- Reversible for summer and winter use via remote control
- Natural wind mode
- Quick connect wiring for ease of installation
- Easy blade assembly
- Available in matt white and matt black
Selected Models
- 19W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K
- Lumen output of up to 1385lm
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | |
| IBIZA/52/BK IBIZA/52/LT/BK | Matt Black |
| IBIZA/48/LT/WH IBIZA/48/WH IBIZA/52/LT/WH IBIZA/52/WH | Satin White |
| Body Material | ABS |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| CCT Configuration | TRI-CCT |
|---|
Colour temperature
| IBIZA/48/LT/WH IBIZA/52/LT/BK IBIZA/52/LT/WH
| |||||||||||||
| IBIZA/48/WH IBIZA/52/BK IBIZA/52/WH | |||||||||||||
Air Movement
| Motor Wattage | 40 W |
|---|---|
| Motor Type | DC |
| Fan Wattage | 3;5;11;19;22;27;32;40 W |
| No. Speeds | 8 |
| RPM | |
| IBIZA/52/BK IBIZA/52/LT/BK IBIZA/52/LT/WH IBIZA/52/WH | 85;105;140;165;170;175;185;205 |
| IBIZA/48/LT/WH IBIZA/48/WH | 95;120;160;185;195;210;220;235 |
| Control | Remote control |
| Airflow | |
| IBIZA/52/BK IBIZA/52/LT/BK IBIZA/52/LT/WH IBIZA/52/WH | 4000;5500;8000;9100;9800;10000;10400;12000 m3/hr |
| IBIZA/48/LT/WH IBIZA/48/WH | 4200;5300;7800;9500;10200;11000;11500;12500 m3/hr |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 325 mm |
| Blade Pitch | 13 ° |
| Blade Material | ABS |
| Fan Size | |
| IBIZA/48/LT/WH IBIZA/48/WH | 1220mm (48inch) |
| IBIZA/52/BK IBIZA/52/LT/BK IBIZA/52/LT/WH IBIZA/52/WH | 1320mm (52inch) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
IBIZA/48/LT
IBIZA/48
IBIZA/52
IBIZA/52/LT
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 15226 | IBIZA/48/LT/WH | 48 inch (1220mm) 3 blade 40W DC ceiling fan W/LED Light white | |
| 15225 | IBIZA/48/WH | 48 inch (1220mm) 3 blade 40W DC ceiling fan white | |
| 15228 | IBIZA/52/BK | 52 inch (1320mm) 3 blade 40W DC ceiling fan black | |
| 15230 | IBIZA/52/LT/BK | 52 inch (1320mm) 3 blade 40W DC ceiling fan W/LED Light black | |
| 15229 | IBIZA/52/LT/WH | 52 inch (1320mm) 3 blade 40W DC ceiling fan W/LED Light white | |
| 15227 | IBIZA/52/WH | 52 inch (1320mm) 3 blade 40W DC ceiling fan white |
Documents & Downloads
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12514 | ROD/150/BK | 1500mm Extension rod for ceiling fans w/loom - Black | |
| 12513 | ROD/150/WH | 1500mm Extension rod for ceiling fans w/loom - white | |
| 12512 | ROD/90/BK | 900mm Extension rod for ceiling fans w/loom - Black | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
