Aero
$0.00

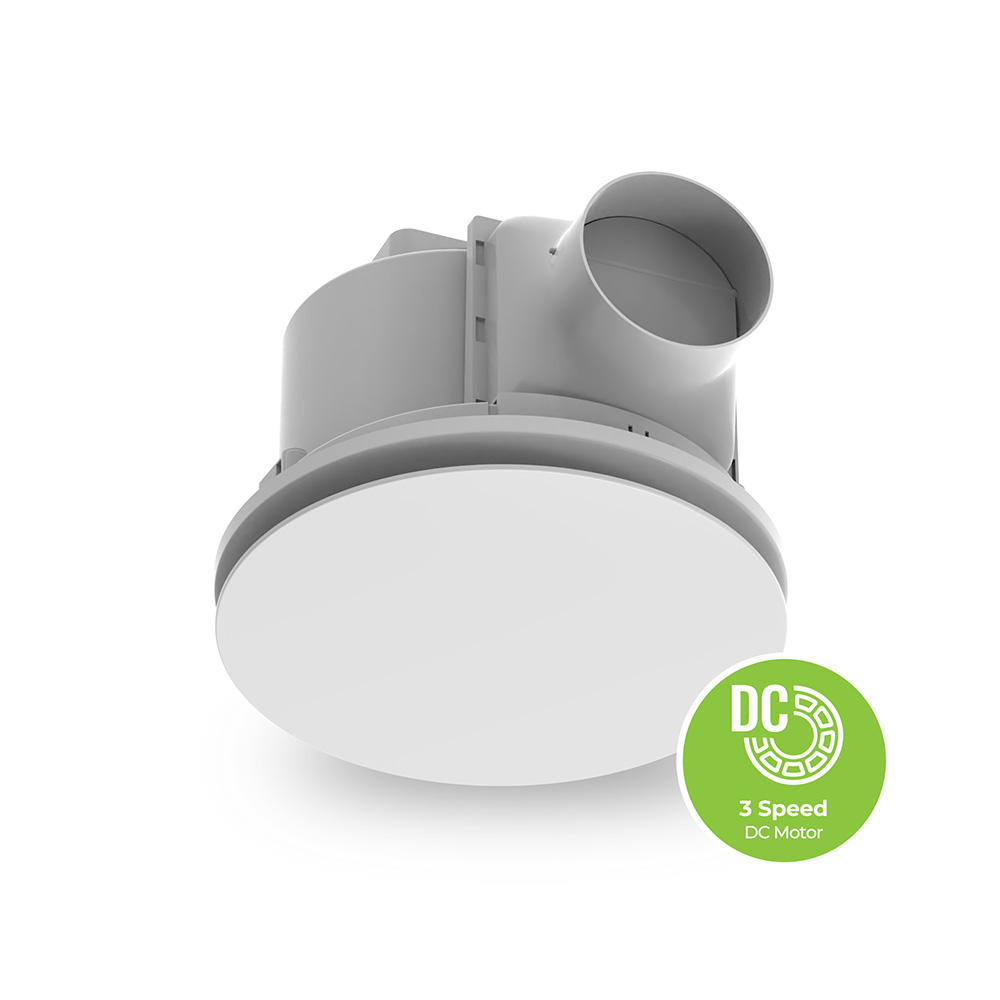

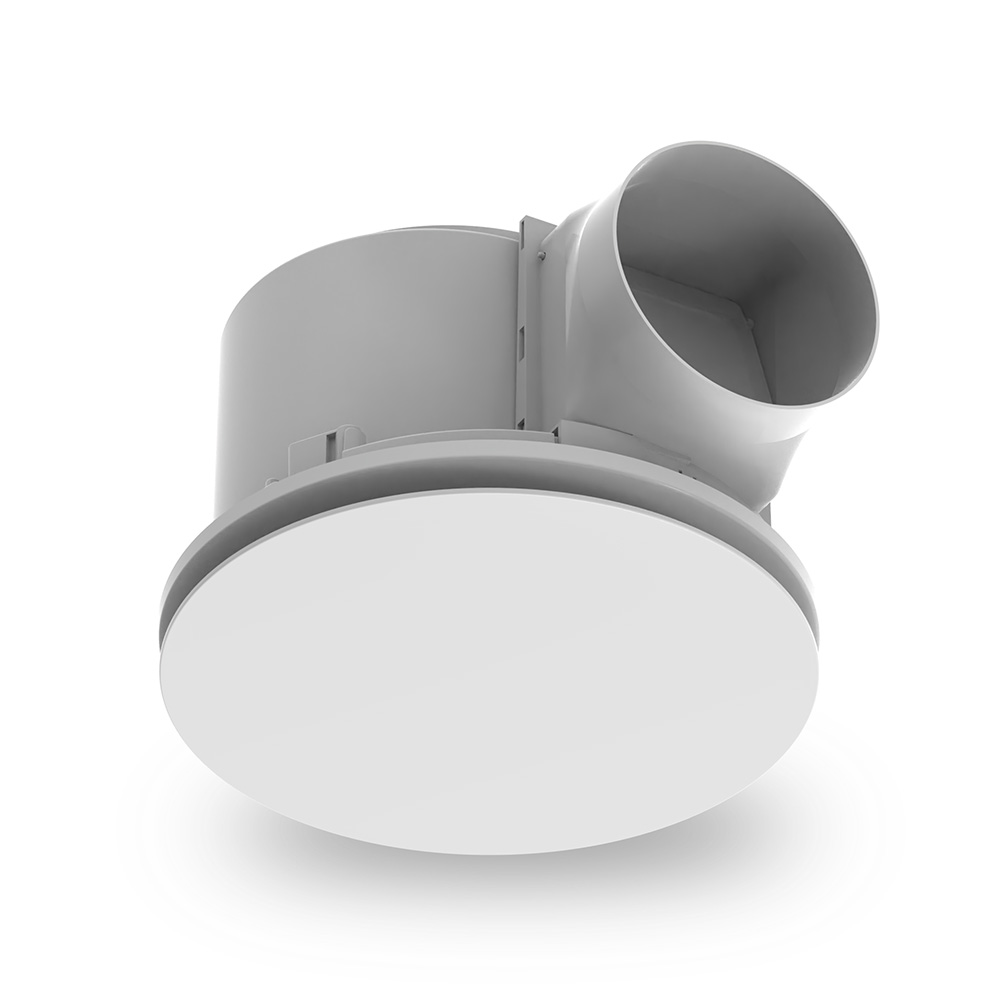

Ducted DC exhaust fan
- 3-speed DC motor for energy-efficient airflow control
- Wireless remote with wall cradle and batteries included
- 24/7 mode for continuous low-speed air circulation
- Boost mode for quick steam extraction (10 minutes)
- Quiet operation to maintain a peaceful environment
- Supplied with flex and plug for easy installation
- Draught stopper and duct adaptor help block backflow
- IPX4 rated for bathroom safety
- 3-year return-to-base warranty for peace of mind
Specifications
Mechanical
IP Rating | IPx4 |
---|---|
Fitting Colour | White |
Product Finish | Matt |
Installation Type | Recessed |
Electrical
Working Temp Range | 40 °C |
---|---|
Input Frequency | 50 Hz |
Input voltage | 230Vac |
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% |
Air Movement
Outlet | |
---|---|
AERO/240/WH/RD | 100 mm |
AERO/290/WH/RD | 150 mm |
Noise level | 57 dB |
Motor Wattage | |
AERO/240/WH/RD | 30 W |
AERO/290/WH/RD | 40 W |
Motor Type | Ball bearing |
Fan Type | Centrifugal |
Fan Size | |
AERO/240/WH/RD | 240 |
AERO/290/WH/RD | 290 |
Air extraction | |
AERO/240/WH/RD | 370 m3/hr |
AERO/290/WH/RD | 560 m3/hr |
Driver
Flex & Plug or Lead Length | 600 mm |
---|---|
Wiring Type | Re-wireable Flex & Plug (3 pin) |
Compliance
Standards |
|
---|
Warranty
Domestic Use Warranty | 3 RTB (Total 3 Years) |
---|
Dimensions
Item Code | Product Height | Product Length | Product Width | Minimum Ceiling Depth | Cutout |
---|---|---|---|---|---|
AERO/240/WH/RD | 202 mm | 272 mm | 300 mm | 220 mm | 240 mm |
AERO/290/WH/RD | 199 mm | 315 mm | 335 mm | 220 mm | 290 mm |
AERO/240/WH/RD


AERO/290/WH/RD


Ordering Information
Order code | Item code | Description | Availability |
---|---|---|---|
14844 | AERO/240/WH/RD | 240mm 30W Ducted DC exhaust fan with round white fascia and 3-speed remote control | |
14845 | AERO/290/WH/RD | 290mm 40W Ducted DC exhaust fan with round white fascia and 3-speed remote control |
