AT9815 Floodlight
$0.00
Commercial LED Floodlight
- Suitable for general outdoor lighting, including small-scale sports areas and private car parks
- Symmetrical light distribution
- Improved efficiency for greater lumen output at the same wattages
- IK08 and IP66 rated for durability in outdoor environments
- 6kV surge protected to better resist grid and lightning surges
- LEDs wired with matrix connections
- Tempered glass diffuser and powder coated aluminium enclosure
- Quick installation
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9815/150 | 159 lm/W |
| AT9815/100 | 160 lm/W |
| AT9815/200 | 161 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | |
|---|---|
| AT9815/200 | IP65 |
| AT9815/100 AT9815/150 | IP66 |
| IK Rating | IK08 |
| Adjustability | Adjustable |
| Fitting Colour | Black |
| Product Finish | Powdercoated |
| Body Material | |
| AT9815/100 AT9815/150 | Aluminium |
| AT9815/200 | Aluminium Alloy |
| Diffuser Material | Glass |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | 0 to 45 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Power Factor | 0.95 |
| Inrush Current | |
| AT9815/100 AT9815/150 | 80 A |
| AT9815/200 | 90 A |
| Inrush Duration | |
| AT9815/100 | 200uS (50%) uS |
| AT9815/150 | 250uS (50%) uS |
| AT9815/200 | 300uS (50%) uS |
| Maximum Wattage | |
| AT9815/100 | 100 W |
| AT9815/150 | 150 W |
| AT9815/200 | 200 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Surge Protection L-N | 6kV |
| Surge Protection L/N-PE | |
| AT9815/100 | 6KV |
| AT9815/150 AT9815/200 | 6kV |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| LED Type | Diffused |
| CCT Configuration | Single |
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
| Beam Angle | 110 ° |
LED Lifetime
| LED Lifetime | 60000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| LED Lifetime Rating | L70 B10 (10K) |
| TM-21 Test Hours | 10000 hrs |
Colour temperature
| CCT Colour | Daylight |
|---|---|
| LED Wattage | |
| AT9815/100 | 100 W |
| AT9815/150 | 150 W |
| AT9815/200 | 200 W |
| Luminaire Lumens | |
| AT9815/100 | 16000 lm |
| AT9815/150 | 23850 lm |
| AT9815/200 | 32200 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | |
| AT9815/100 AT9815/200 | 5000 K |
| AT9815/150 | 50000 K |
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | No |
| Flex & Plug or Lead Length | 1500 mm |
| Wiring Type | Flying leads (3 wire) |
| Driver Mode | Constant Current |
| Driver Current | |
| AT9815/100 | 500 mA |
| AT9815/150 | 750 mA |
| AT9815/200 | 900 mA |
Compliance
| Daily Use | 10 hrs |
|---|---|
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Item Code | Product Height | Product Length | Product Width |
|---|---|---|---|
| AT9815/100 | 325 mm | 241 mm | 100 mm |
| AT9815/150 | 360 mm | 261 mm | 128 mm |
| AT9815/200 | 395 mm | 267 mm | 153 mm |

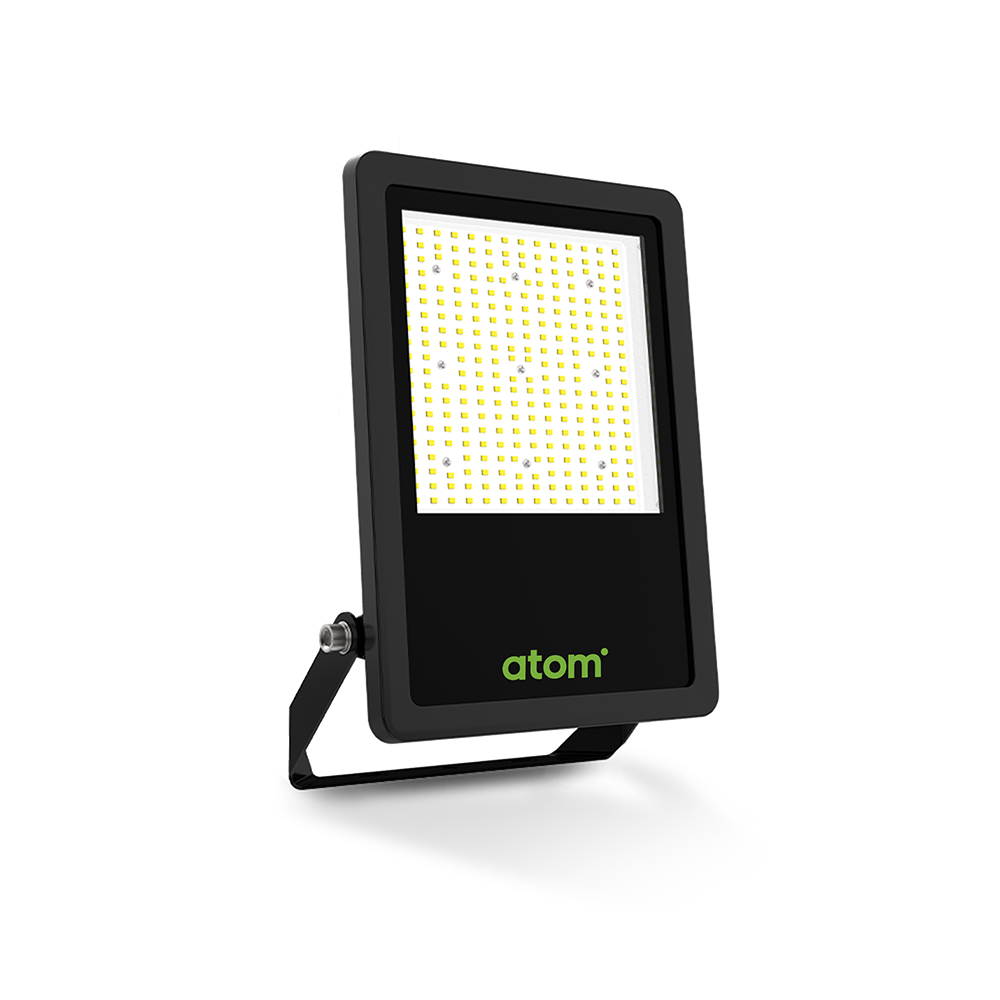

AT9815/100

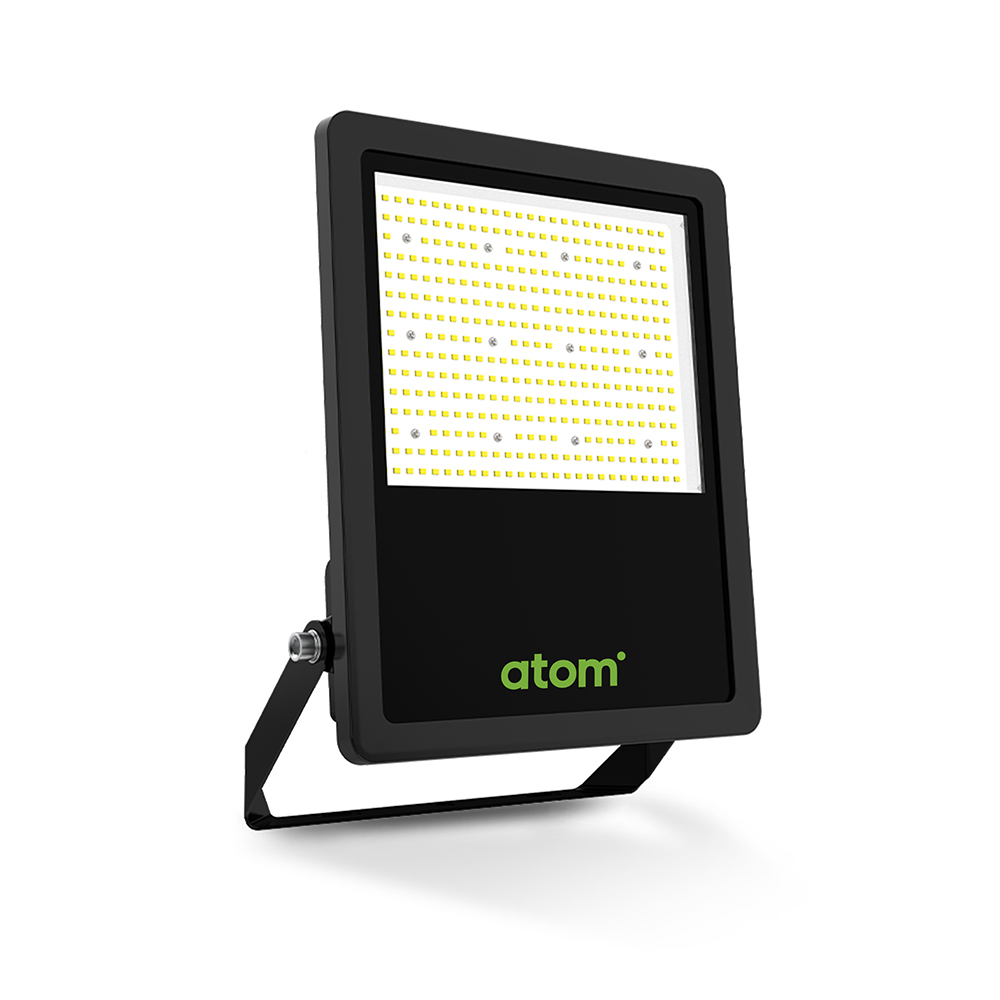

AT9815/150

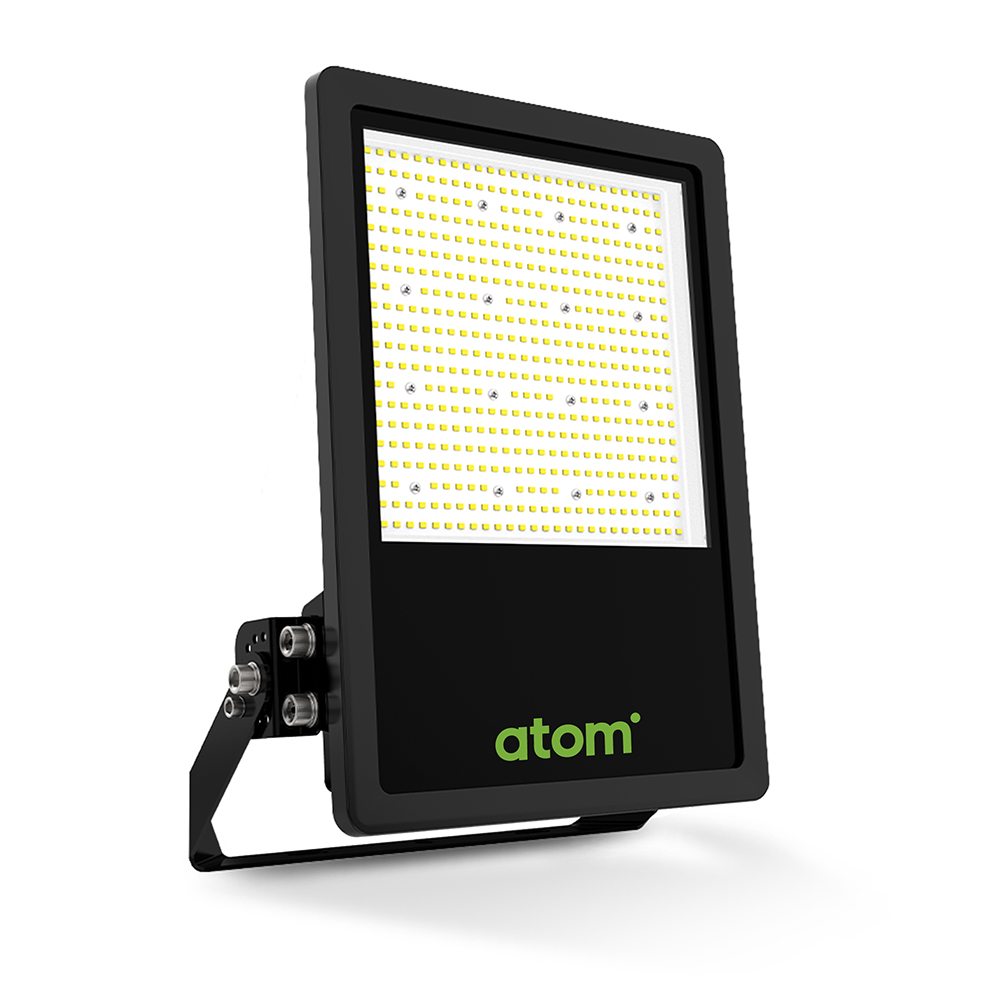

AT9815/200
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14476 | AT9815/100 | Zenix 100W LED Floodlight - 5000K | |
| 14477 | AT9815/150 | Zenix 150W LED Floodlight - 5000K | |
| 14478 | AT9815/200 | Zenix 200W LED Floodlight - 5000K |
