Vanuatu
$0.00

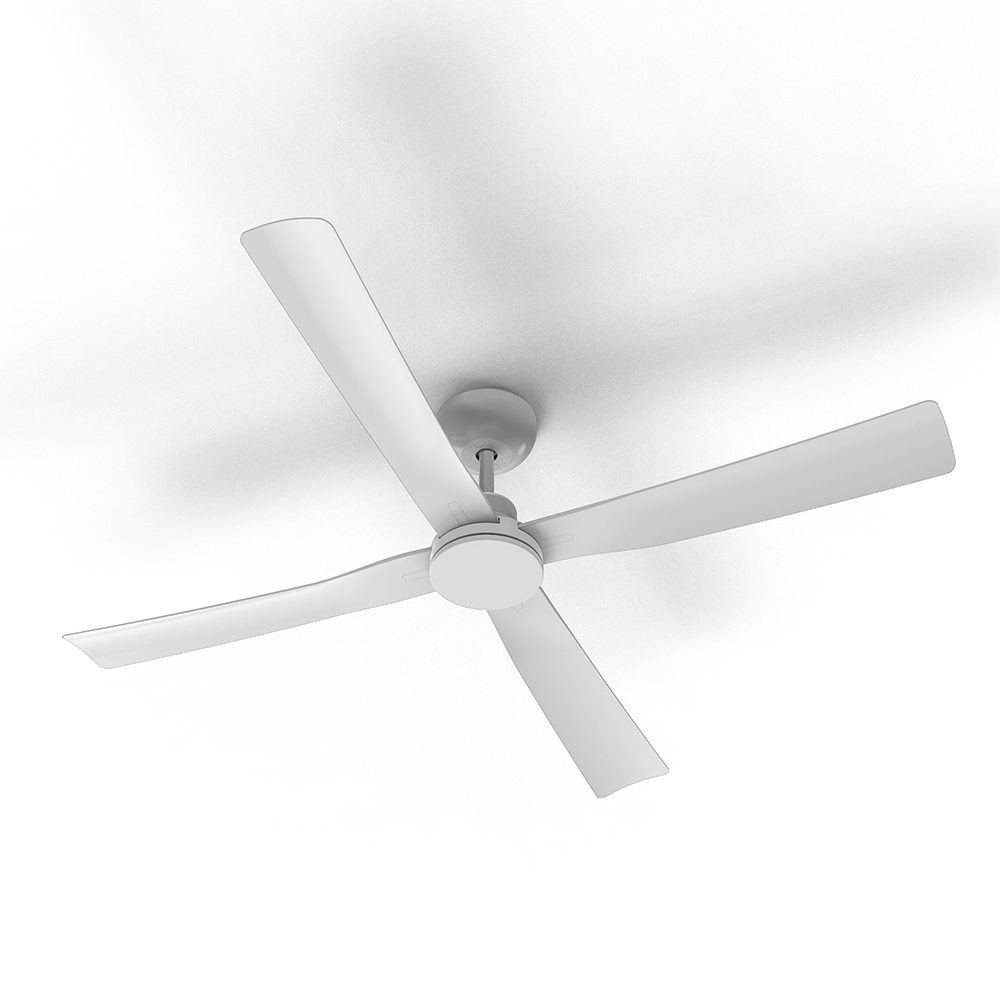

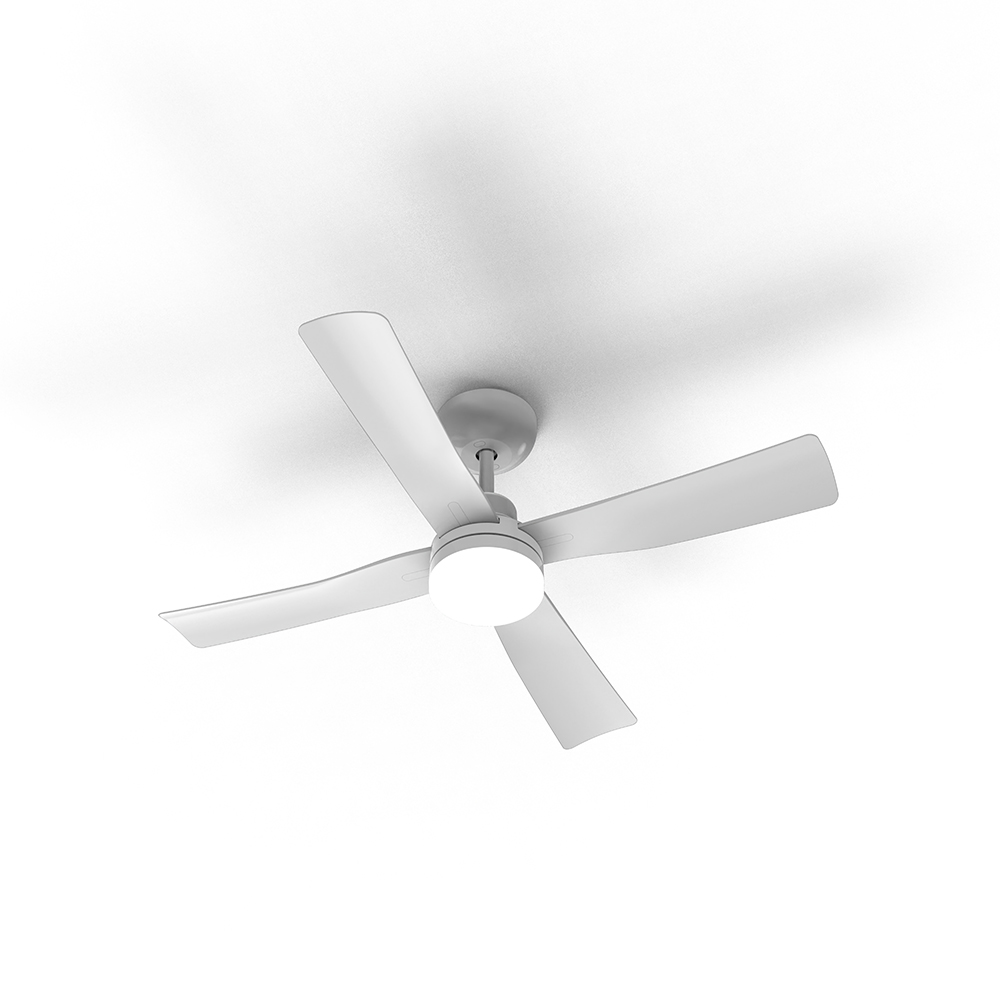

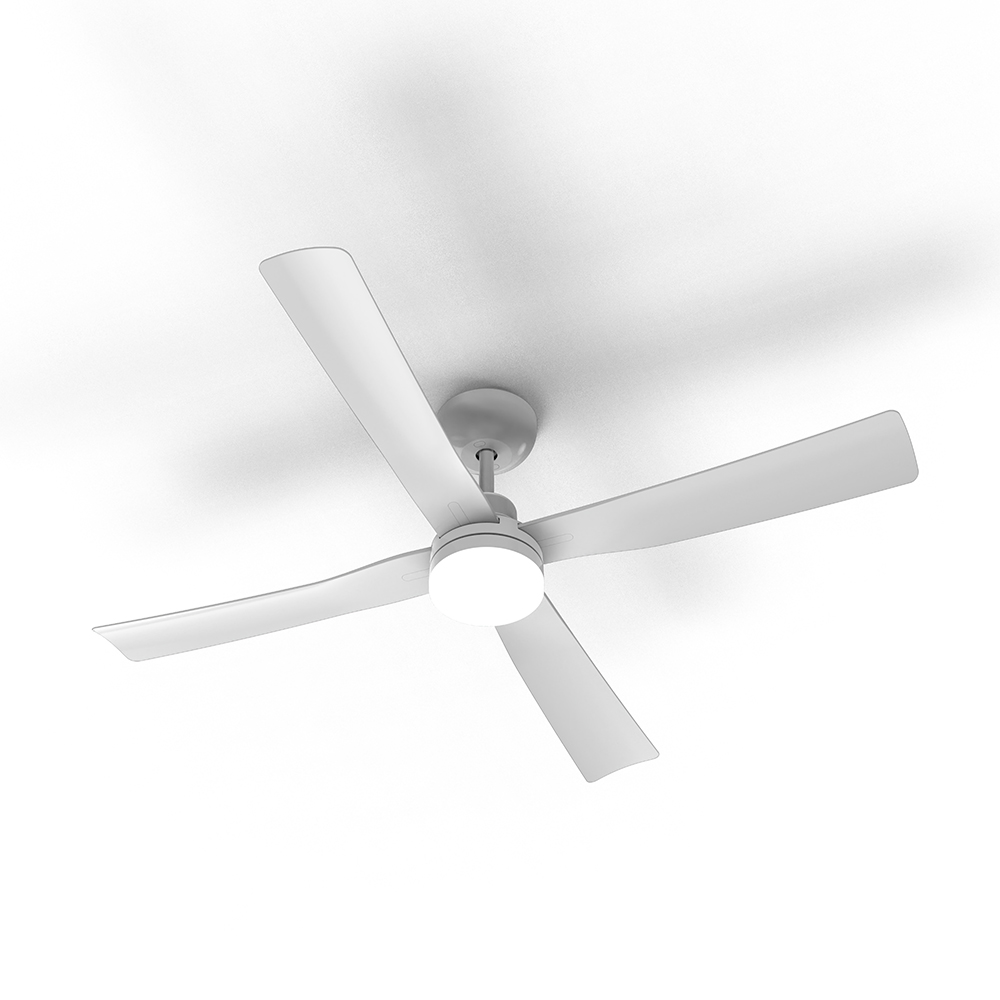

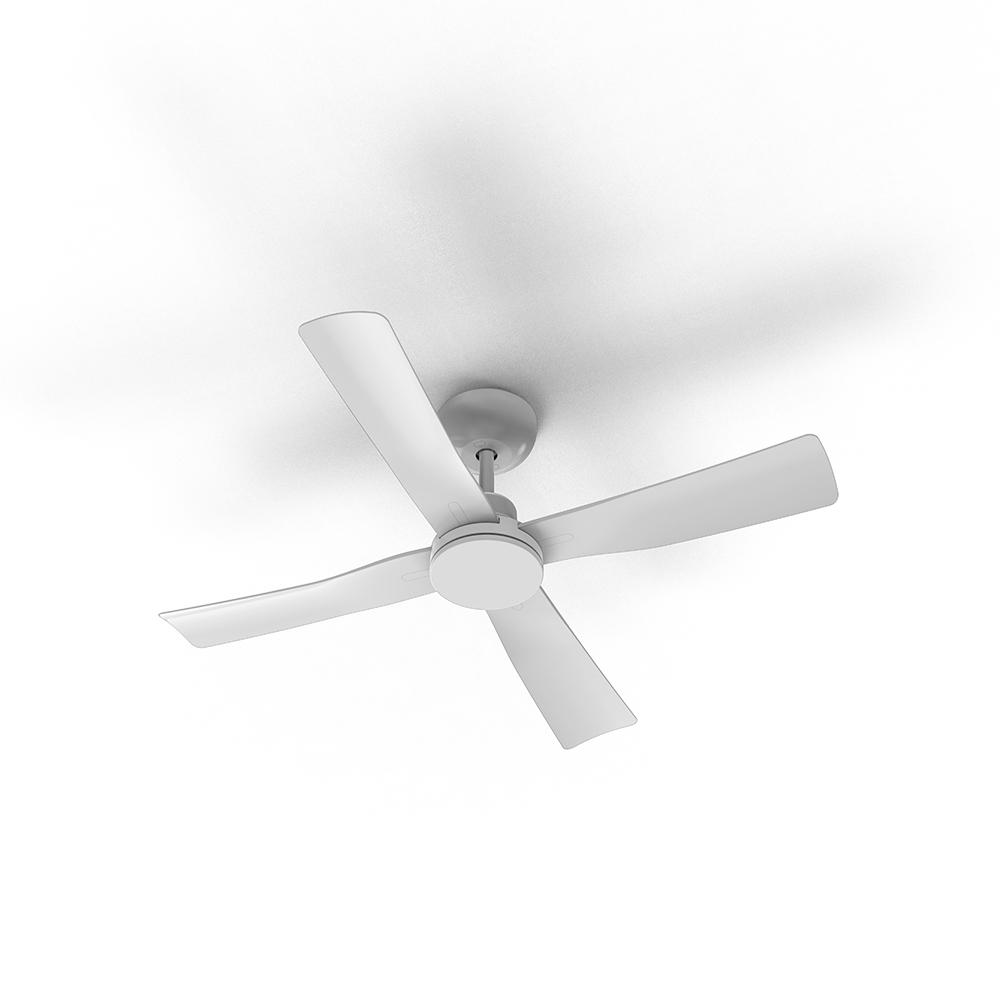

4 blade 40W DC ceiling fan
- Quiet and efficient 40W DC motor
- ABS construction ideal for coastal conditions

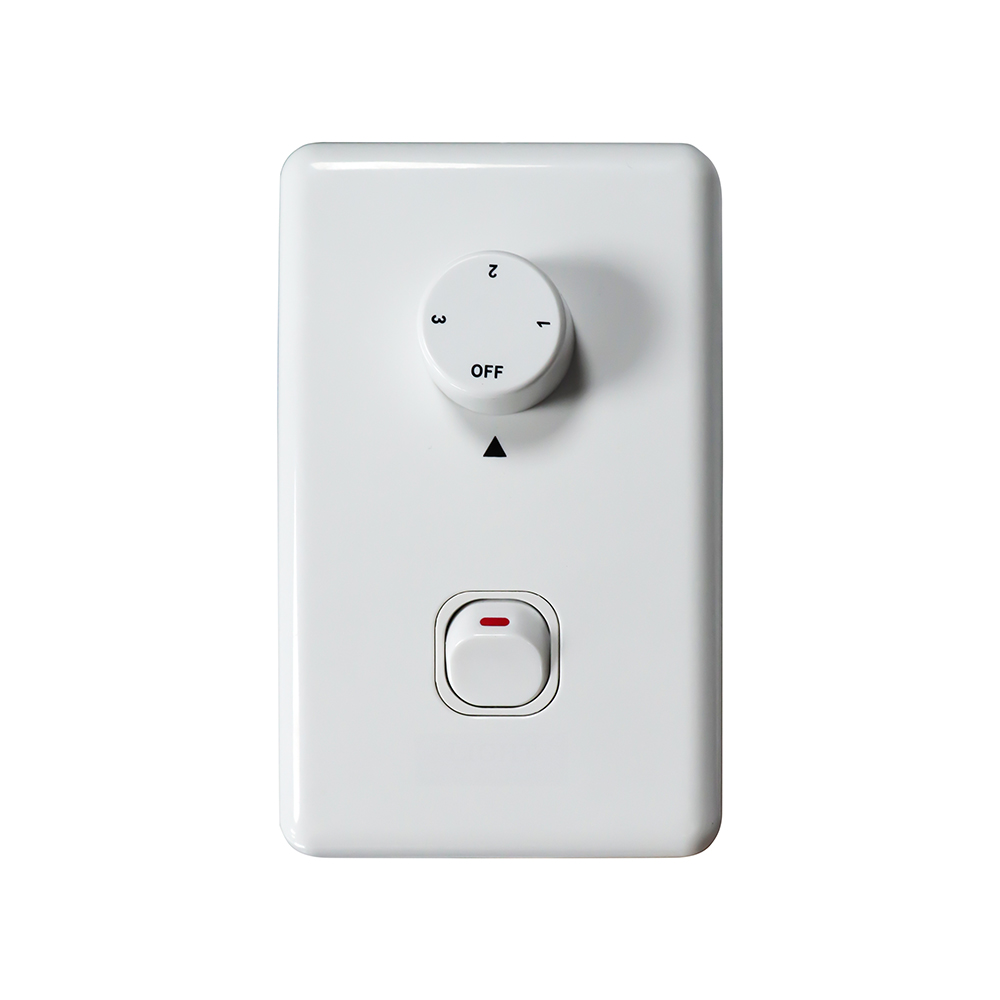

- Includes 3 speed DC wall control
- Ideal for outdoor undercover patio areas
- Reversible for summer and winter use
- Quick connect wiring for ease of installation
- Easy blade assembly
Selected Models
- 15W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K
- Lumen output of up to 1145lm
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | Satin White |
| Body Material | ABS |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Air Movement
| Motor Wattage | 40 W |
|---|---|
| Motor Type | DC |
| Fan Wattage | 40;20;5 W |
| No. Speeds | 3 |
| RPM | |
| VANUATU/52/LT/WH VANUATU/52/WH | 186;145;90 |
| VANUATU/48/LT/WH VANUATU/48/WH | 206;165;100 |
| VANUATU/39/LT/WH VANUATU/39/WH | 295;240;140 |
| Control | Wall control |
| Airflow | |
| VANUATU/39/LT/WH VANUATU/39/WH | 10600;8700;4400 m3/hr |
| VANUATU/52/LT/WH VANUATU/52/WH | 11100;8800;4600 m3/hr |
| VANUATU/48/LT/WH VANUATU/48/WH | 11200;9400;5000 m3/hr |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 330 mm |
| Blade Material | ABS |
| Fan Size | |
| VANUATU/48/LT/WH VANUATU/48/WH | 1220mm (48inch) |
| VANUATU/52/LT/WH VANUATU/52/WH | 1320mm (52inch) |
| VANUATU/39/LT/WH VANUATU/39/WH | 990mm (39inch) |
Compliance
| Standards |
|
|---|
Dimensions
VANUATU/39/LT/WH
VANUATU/39/WH
VANUATU/48/LT/WH
VANUATU/48/WH
VANUATU/52/LT/WH
VANUATU/52/WH
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 15220 | VANUATU/39/LT/WH | 39 inch (990mm) 4 blade 40W DC ceiling fan white | |
| 15219 | VANUATU/39/WH | 39 inch (990mm) 4 blade 40W DC ceiling fan white | |
| 15222 | VANUATU/48/LT/WH | 48 inch (1220mm) 4 blade 40W DC ceiling fan W/LED Light white | |
| 15221 | VANUATU/48/WH | 48 inch (1220mm) 4 blade 40W DC ceiling fan white | |
| 15224 | VANUATU/52/LT/WH | 52 inch (1320mm) 4 blade 40W DC ceiling fan W/LED Light white | |
| 15223 | VANUATU/52/WH | 52 inch (1320mm) 4 blade 40W DC ceiling fan white |
Documents & Downloads
Instruction Manual
Datasheet
*Auto generated datasheet (beta)
